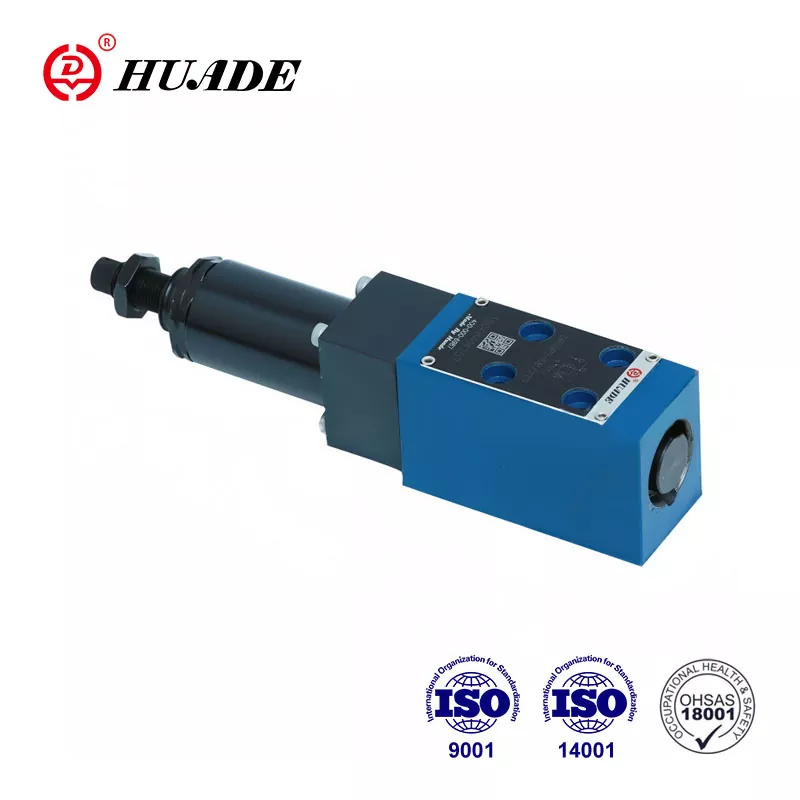

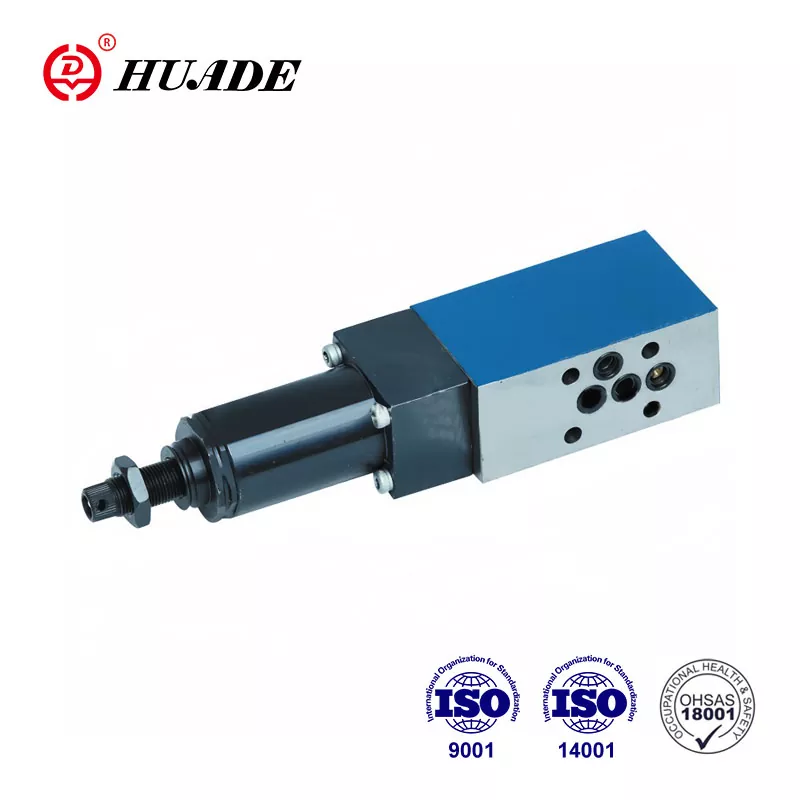

Valvola di riduzione della pressione DR 5 DP

Come distributore autorizzato di Huade Idraulic, siamo specializzati nel fornire valvola di riduzione della pressione Huade® DR 5 DP. La merce Huade® è sempre arrivata agli standard internazionali. Huade Hydraulic ha avuto due esperienze di cooperazione con Rexroth e le prestazioni e la qualità dei suoi prodotti sono paragonabili a quelle dei grandi marchi di primo livello. Il prezzo è ragionevole. Con questi punti di forza unici, le valvole di riduzione della pressione Huade® sono già popolari tra i consumatori.

Invia richiesta PDF Scarica

Descrizione del prodotto

Pressure reducing valve DR 5 DP is used to control the pressure in the hydraulic system. Due to introducing Rexroth technology, Huade® DR 5 DP series pressure reducing valves can replace the same type of Rexroth. Huade Hydraulic has a strict testing system to ensure the high quality of its products. The series of pressure control valves are widely used in marine hydraulic system.

Product parameter of Pressure Reducing Valve DR 5 DP

Max.operating pressure(Port P) (MPa)	up to 31.5
Max. secondary pressure (Port A) (MPa)	up to 21.0;without non-return valve up to 31.5
Max.back pressure( Ports T(Y)) (MPa)	up to 6.0
Max.flow (L/min)	up to 15
Pressure fluid Mineral oil	Mineral oil (for NBR seal)or phosphate ester(for FPM seal)
Viscosity range(mm ²/s)	10~800
Pressure fluid-temperature range(℃)	-30 to +80
Degree of contamination (um)	Maximum permissible degree of contamination of the fluid is to NAS 1638 class 9.
Weight (kg)	approx.1.0

Product Feature And Application of Pressure Reducing Valve DR 5 DP

Features:

▶ Subplate mounting

▶ 5 pressure ratings

▶ 4 adjustment elements

. Rotary knob

. Set screw with hexagon and protective cap,

. Lockable rotary knob with scale

. Rotary knob with scale

▶ Check valve, optional

▶ Porting pattern to DIN 24 340, form D, ISO 5781 and CETOP - RP 121H

Application:

Pressure reducing valve DR 5 DP is used to reduce the system pressure.

Section and symbol of Pressure Reducing Valve DR 5 DP

The valve type DR5 DP is a 3-way direct operated pressure reducing valve with a pressure relief function on the secondary side.

The secondary pressure is set by the pressure adjustment element (4). At rest, the valve is normally open and the pressure fluid can flow unhindered from port P to port A. The pressure in port A is at the same time, via the control line (6), present at the spool area opposite to the compression spring(3). When the pressure in port A exceeds the pressure level set at compression spring (3), the control spool (2) moves into the control position and holds the set pressure in port A constant.

The control and pilot oil are taken from port A via control line (6).

If the pressure in port A still increases due to external forces on the actuator, the control spool(2) moves still further towards the compression spring(3).

This causes a flow path to be opened at port A via control land (8) on the control spool (2) to the tank. Sufficient pressure fluid then flows to tank to prevent any further rise in pressure.

The spring chamber is always drained to tank externally via port T(Y).

For free return flow from port A to port P an optional check valve (5) can be fitted.

structure of DR 5 DP 3 10B

Symbols of DR 5 DP
