Pressure Relief Valve Rexroth Interchangeable

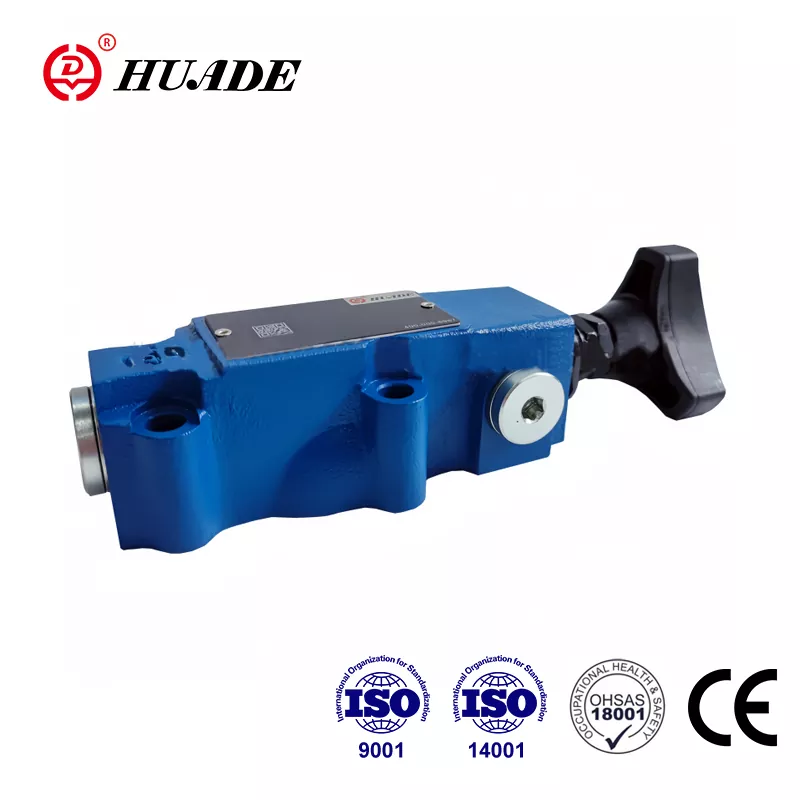

Remote Control Relief Valve DBWT

MANUFACTURER Genuine Huade Hydraulic
STANDARDS ISO 4401 / DIN 24340
AVAILABILITY Factory Direct Stock
Awaiting product image
TECHNICAL REPLACEMENT NOTICE

This Huade® directional control valve serves as a 100% direct drop-in replacement for Bosch Rexroth REMOTE-CONTROL-RELIEF-VALVE-DBWT equivalents. Dimensions, mounting interfaces, and technical parameters are identical. Designed for cost reduction in industrial and mobile hydraulic systems.

• Product features: Remote control operation, pilot-operated design, three adjustment options (rotary knob, hex screw, lockable knob)
• Specifications: Max pressure 31.5 MPa, max flow 3 L/min, temperature range -30~+80°C
• Applications: Remote pressure control systems, industrial hydraulic equipment, military defense applications

Request B2B Quote

Submit your target quantity and technical questions. Our hydraulic engineering team will provide a factory-direct quote and lead time estimate within 24 hours.

Send Product Inquiry → 📥 Download PDF Datasheet
💬 WhatsApp: +86-18217786775
✓
100% Genuine Huade Direct factory authorized supply
✓
ISO 4401 Mounting ISO 4401 / Rexroth interchangeable
✓
Secure Packaging Sealed rust-proof global shipping

Technical Data Sheet

  • Product Overview
  • Features & Applications
  • Technical Parameters

Product Overview

Beijing Huade Hydraulic Industrial Group is a renowned state-owned company specializing in the the design, manufacturing, and service of hydraulic products and equipment. DBWT relief valve can replace the products offered by Rexroth®. The factory has passed ISO9001, ISO14001 and OH SAS18001. Huade Hydraulic has a good inspection system to ensure the high quality of hydraulic valves. The factory operates more than 750 pieces advanced production equipment imported from all over the world. Each pressure valve will be packed in waterproof plastic bags and standard cartons, with anti-counterfeiting marks attached. Huade® hydraulic products are widely used in the military industry to promote the modernization of defense equipment.

Mineral oil (for NBR seal),or phosphate ester(for FPM seal)

Viscosity range           (mm2/s)

Key Features

  • long distance remote control
  • subplate mounting
  • three adjustment elements:
  • Rotary knob
  • Hex. head screw with protective cap
  • Lockable rotary knob with scale

Industrial Applications

  • Type DBWT is apply to remote control the pressure of system and drain by actuating the electrically operated valve.
  • Type DBWT remote control pressure valves are pilot operated pressure relief valves.
  • Type DBWT consist mainly of the main valve (1), main spool(2), valve seat (3), electrically operated valve (5), and adjustment (6)
  • Structure and symbols of pressure relief valve DBWT
  • The fluid must be filtered. Minimum filter fineness is 20 ㎛.
  • The tank must be sealing up and an air filter must be installed on air entrance.
  • Products without subplate when leaving factory, if need them, please ordering specially.
  • Valve fixing screws must be high intensity level (class 10.9). Please select and use,them according to the parameter listed in the sample book.
  • Roughness of surface linked with the valve is required surface roughness is 0.8.
  • Surface finish of mating piece is required to 0.01/100mm.

Technical Parameters

Mechanical ratings and operating limits for the Remote Control Relief Valve DBWT:

Parameter / Dimension Name Value / Rating Specification
Technical data Technical data
Pressure fluid Mineral oil (for NBR seal),or phosphate ester(for FPM seal)
Temperature range（℃） -30～+80
Viscosity range           (mm2/s) - 10~800
max.flow (L/min) 3
max. operating pressure (MPa) 31.5
max. Setting pressure (MPa ) - up to10 or 31.5
Back pressure - DBWT (MPa) up to 10 (AC);up to 16 (DC)
Pilot valve see directional valve WE5
