This proportional valve 4WRE-2X is a proportional directional valve with a direct-acting proportional solenoid, which is used to control the flow rate and flow direction of the hydraulic oil. It has the characteristics of beautiful appearance. It is easy to use proportional valve 4WRE-2X. Users only need to use a seven-core plug to use it, and at the same time solve the matching of electro-hydraulic, which is conducive to the application of bus control technology.

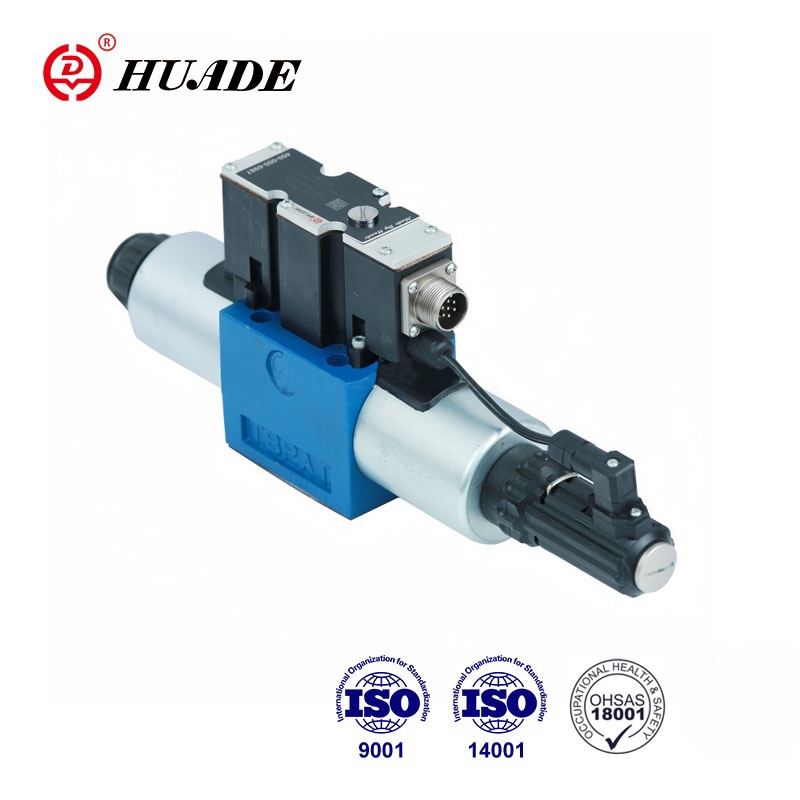

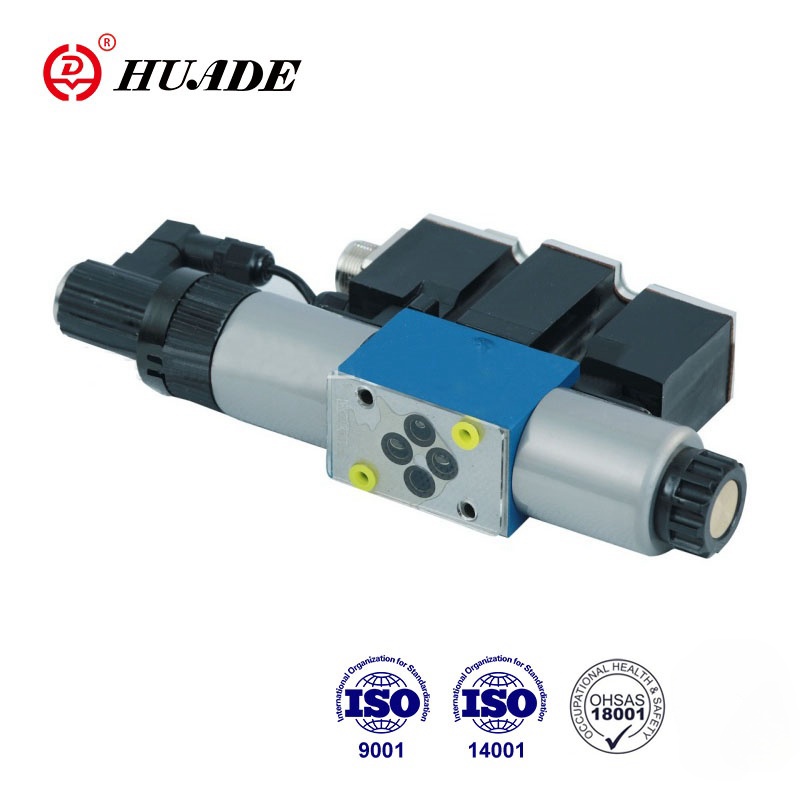

Proportional Directional Valve 4WRE-2X
TECHNICAL REPLACEMENT NOTICE
This Huade® directional control valve serves as a 100% direct drop-in replacement for Bosch Rexroth PROPORTIONAL-DIRECTIONAL-VALVE-4WRE-2X equivalents. Dimensions, mounting interfaces, and technical parameters are identical. Designed for cost reduction in industrial and mobile hydraulic systems.
• Product features:Spring centred control spool
• Specifications:4WRE-2X series,
• Applications:metallurgy, mining, aerospace, e
Request B2B Quote
Submit your target quantity and technical questions. Our hydraulic engineering team will provide a factory-direct quote and lead time estimate within 24 hours.
Send Product Inquiry Download PDF Datasheet
✓
100% Genuine Huade
Direct factory authorized supply
✓
ISO 4401 Mounting
ISO 4401 / Rexroth interchangeable
✓
Secure Packaging
Sealed rust-proof global shipping
Technical Data Sheet
- Product Overview
- Features & Applications
- Technical Parameters
Product Overview
Key Features
- Directly controlled proportional directional valve for the control of the direction and magnitude of a flow
- For subplate mounting
- Electrical position feedback
- Spring centred control spool
- Type 4WREE, integrated valve electronics with interface A1 or F1
- Actuation is by proportional solenoids with central thread and removable coil
- Valve and electronic control from one source
Industrial Applications
- Proportional directional valve 4WRE-2X is widely used in various fields such as machine tools, light industry, metallurgy, mining, aerospace, etc.
- The 4/2 and 4/3 proportional directional valves are directly controlled components of subplate mounting design.
- They are operated by proportional solenoids with central thread and removable coil. The solenoids are optionally controlled by either external control electronics(type WRE) or by integrated control electronics(type WREE).
- Functional description:
- With the solenoids (5 and 6), de-energised, the control spool (2)is held in the central position by the compression springs(3 and 4)
- Direct operation of the control spool (2) by energising one of the proportional solenoids, e.g. control of solenoid "b" (6)
- →Movement of the control spool (2) to the left in proportion to the electrical input signal
- →Connection from P to A and B to T via orifice like cross-sections with progressive flow characteristics
- De-energising of solenoid(6)
- →The control spool (2) is returned to the central position via the compression spring (3)
- HD-4WRE...A-2X
- In the de-energised condition the spool (2) is held in a mechanical centre position by the solenoid return springs. This, for the spool symbol "V", does not relate to the hydraulic centre position! When the electrical valve closed loop control circuit is closed then the spool is positioned in the hydraulic centre position.
- Design:
- The valve basically consists of:
- Housing(1) with mountinq face
- Control spool(2) with compression springs(3 and 4)
- Solenoids (5 and 6) with central thread
- Position transducer (7)
- Optional integrated control electronics(8)
- The mechanical zero point adjustment (9) is accessible via the Pg 13.5 and the electrical zero point is accessible via the Pg 7(10)(type 4WREE)
- Symbol of Proportional Directional Valve 4WRE-2X
Technical Parameters
Mechanical ratings and operating limits for the Proportional Directional Valve 4WRE-2X:
| Parameter / Dimension Name | Value / Rating Specification |
|---|---|
| Hydraulic | Hydraulic |
| Size - 6 | 10 |
| Operating pressure - Ports A、P、B - 31.5 | 31.5 |
| - Port T - 21 | 21 |
| Nominal flow Qvnom at △ P=1MPa(L/min) - 8、16、32 | 25、50、75 |
| Max. permissible flow (L/min) - - 80 | 180 |
| Degree of contamination (μm) - - ≤20(recommend 10) | ≤20(recommend 10) |
| Hysteresis(%) - ≤0.1 | ≤0.1 |
| Reversal span (%) - ≤0.05 | ≤0.05 |
| Response sensitivity (%) - - ≤0.05 | ≤0.05 |
| Pressure fluid - - Mineral oils, phosphate ester | Mineral oils, phosphate ester |
| Viscosity range mm2/S - - 20 to 380 | 20 to 380 |
| Ambient temperature range (℃) - 4WRE - -20 to +70 | -20 to +70 |
| Ambient temperature range (℃) - 4WREE - -20 to +50 | -20 to +50 |
| Weight (Kg) - 4WRE - 2.2 | 6.3 |
| Weight (Kg) - 4WREE - 2.4 | 6.5 |
