Check Valve Rexroth Interchangeable

Check Valve Sandwich Plate Z1S

MANUFACTURER Genuine Huade Hydraulic
STANDARDS ISO 4401 / DIN 24340
AVAILABILITY Factory Direct Stock

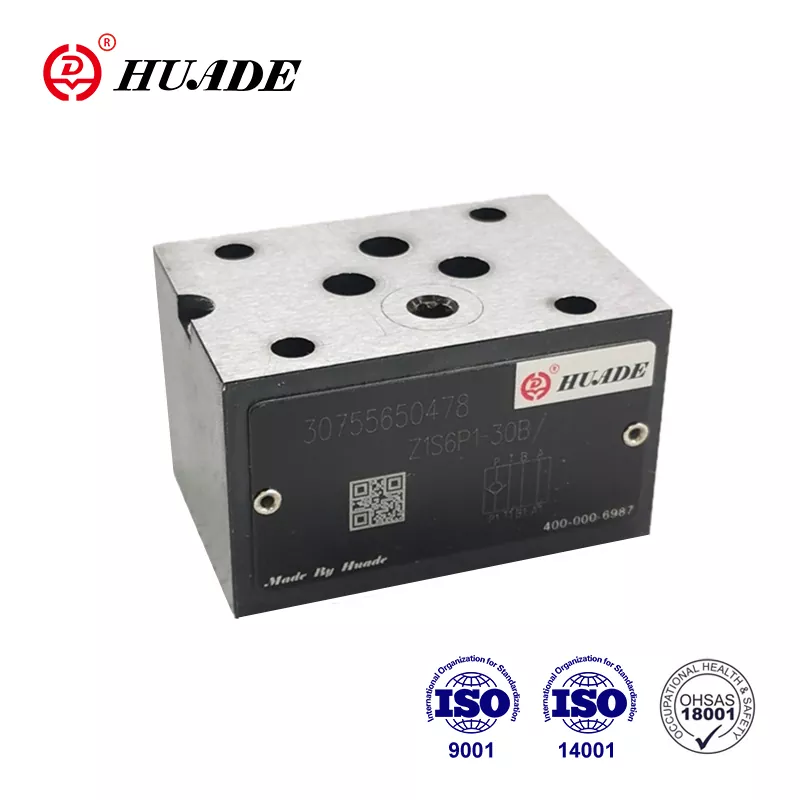

Check Valve Sandwich Plate Z1S
TECHNICAL REPLACEMENT NOTICE

This Huade® directional control valve serves as a 100% direct drop-in replacement for Bosch Rexroth CHECK-VALVE-SANDWICH-PLATE-Z1S equivalents. Dimensions, mounting interfaces, and technical parameters are identical. Designed for cost reduction in industrial and mobile hydraulic systems.

• Product features: Direct operated design, metallic seal, Rexroth-compatible Z1S series replacement
• Specifications: Size 6/10, max flow 40/100 L/min, max pressure 31.5 MPa
• Applications: Vertical stacking hydraulic assemblies, high-pressure systems above 10 MPa

Request B2B Quote

Submit your target quantity and technical questions. Our hydraulic engineering team will provide a factory-direct quote and lead time estimate within 24 hours.

Send Product Inquiry → 📥 Download PDF Datasheet
💬 WhatsApp: +86-18217786775
✓
100% Genuine Huade Direct factory authorized supply
✓
ISO 4401 Mounting ISO 4401 / Rexroth interchangeable
✓
Secure Packaging Sealed rust-proof global shipping

Technical Data Sheet

  • Product Overview
  • Features & Applications
  • Technical Parameters
  • Functional Description

Product Overview

As China's leading manufacturer of hydraulic transmission and control technology, Huade has incorporated cutting-edge technology from Rexroth. Huade® check valve Z1S can completely replace the Z1S series offered by Rexroth. It is cost-effective. Huade has passed ISO9001, ISO14001, and ISO45001. Huade® cartridge valve Z1S have reliable performance. It is an old national brand in China. It is more advanced in technology and more durable than the similar products in this line.

Technical data (for applications outside these parameters, please consult us!)

Mineral oils(for NBR seal) or  phosphate ester(for FPM seal)

Key Features

  • Sandwich plate valve for use in vertical stacking assemblies
  • 8 different isolating functions

Industrial Applications

  • This check valve sandwich plate type Z1S is used for vertical stacking installation.

Technical Parameters

Mechanical ratings and operating limits for the Check Valve Sandwich Plate Z1S:

Parameter / Dimension Name Value / Rating Specification
Technical data (for applications outside these parameters, please consult us!) Technical data (for applications outside these parameters, please consult us!)
Size - 6 10
Max.flow(L/min) - 40 100
Max.operating pressure(MPa) - to 31.5 to 31.5
Cracking pressure - See characteristic curves See characteristic curves
Pressure fluid - Mineral oils(for NBR seal) or  phosphate ester(for FPM seal) Mineral oils(for NBR seal) or  phosphate ester(for FPM seal)
Pressure fluid temperature range(℃) - -30～+80 -30～+80
Viscosity range    (mm2/s) - 2.8 to 500 2.8 to 500
Weight   (Kg) - 0.8 2.3

Functional Description

The Z1S valve is a direct operated check valve in sandwich plate design. It is used for the leak-free closure in one direction and allows free-flow in the counter direction. This valve type has a metallic seal between poppet (3) and housing (1). Check valves of Z1S type are especially suitable for applications with operating pressures above 10.0 MPa and flow velocities over 4 m/s.

1. The fluid must be filtered. Minimum filter fineness is 20 ㎛.

2. The tank must be sealing up and an air filter must be installed on air entrance.

3. Products without subplate when leaving factory, if need them, please ordering specially.

4. Valve fixing screws must be high intensity level (class 10.9). Please select and use them according to the parameter listed in the sample book.

5. Roughness of surface linked with the valve is required to 0.8.

6. Surface finish of mating piece is required to 0.01/100mm.
