Check Valve Rexroth Interchangeable

Check Valve RVP 16

MANUFACTURER Genuine Huade Hydraulic
STANDARDS ISO 4401 / DIN 24340
AVAILABILITY Factory Direct Stock

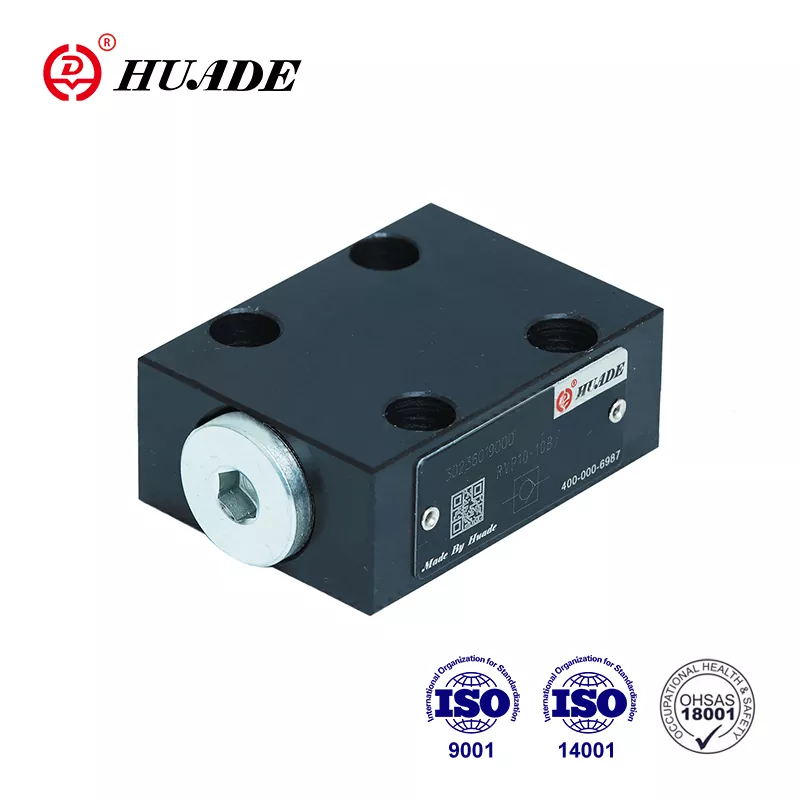

Check Valve RVP 16
Check Valve RVP 16 - Image 2
TECHNICAL REPLACEMENT NOTICE

This Huade® directional control valve serves as a 100% direct drop-in replacement for Bosch Rexroth CHECK-VALVE-RVP-16 equivalents. Dimensions, mounting interfaces, and technical parameters are identical. Designed for cost reduction in industrial and mobile hydraulic systems.

• Product features: Poppet valve structure, leakage-free closure, Rexroth-compatible design
• Specifications: Size 6-40, max pressure 31.5 MPa, opening pressure 0.05 MPa
• Applications: Pump outlet back pressure valve, bypass valve, industrial hydraulic systems

Request B2B Quote

Submit your target quantity and technical questions. Our hydraulic engineering team will provide a factory-direct quote and lead time estimate within 24 hours.

Send Product Inquiry → 📥 Download PDF Datasheet
💬 WhatsApp: +86-18217786775
✓
100% Genuine Huade Direct factory authorized supply
✓
ISO 4401 Mounting ISO 4401 / Rexroth interchangeable
✓
Secure Packaging Sealed rust-proof global shipping

Technical Data Sheet

  • Product Overview
  • Features & Applications
  • Technical Parameters

Product Overview

As China's leading manufacturer of hydraulic transmission and control technology, Huade has Cooperation with Rexroth for more than 7 years from 1979. Huade® check valve RVP 16 can repace Rexroth’s RVP 16 completely. Huade’s commodity meets the international standards, namely ISO9001,ISO14001, and OH SAS18001. The factory has a good inspection system to ensure excellent quality of all products before leaving the factory. Huade® check valve RVP 16 can be widely used in engineering and construction machinery, metallurgy, machine tools, environmental protection, shipbuilding, aerospace, rail transit, petroleum and petrochemical, military industry and other fields. This is a well-known national brand in China.

Pressure fluid temperature range（℃）

Key Features

  • Subplate connection
  • Leakage-free closure in one direction

Industrial Applications

  • The check valve RVP 16 is mainly used at the outlet of the pump as a back pressure valve and bypass valve.
  • It is a poppet valve structure with small pressure loss. Symbol and structure diagram are as illustrated below. This check valve RVP 16 has the task of, preferably closing a flow leak free in one direction and to permit free flow in the opposite direction.It basically comprises of the housing (1), poppet (2) compression spring (3),and spring seat(4). The stroke of the poppet (2), which is guided on its outside diameter, is limited by a mechanical stop. The built-in compression spring (3) supports the closing movement. Furthermore the compression spring(3) holds the poppet (2) in the closed position even when there is no flow through the valve.
  • Symbol
  • Structure diagram
  • Housing  ②Poppet  ③Spring  ④Spring seat
  • The fluid must be filtered. Minimum filter fineness is 20 ㎛.
  • The tank must be sealing up and an air filter must be installed on air entrance
  • Products without subplate when leaving factory, if need them, please ordering specially.
  • Valve fixing screws must be high intensity level (class 10.9). Please select and use them according to the parameter listed in the sample book
  • Roughness of surface linked with the valve is required to 0.8.
  • Surface finish of mating piece is required to 0.01/100mm.

Technical Parameters

Mechanical ratings and operating limits for the Check Valve RVP 16:

Parameter / Dimension Name Value / Rating Specification
Technical data Technical data
Size - 6 - 8 - 10 - 12 - 16 - 20 - 25 - 30 40
Operating pressure, max (MPa) - 31.5 31.5
Opening pressure (MPa) - 0.05 0.05
Pressure fluid - mineral oils or phosphate ester mineral oils or phosphate ester
Pressure fluid temperature range（℃） - -30～+80 -30～+80
Viscosity range   (mm2/s) - 2.8~500 2.8~500
Fixing position - optional optional
Weight(Kg) - 0.26 - 0.50 - 0.80 - 1.10 - 2.25 - 3.90 - 6.70 - 11.00 17.00
